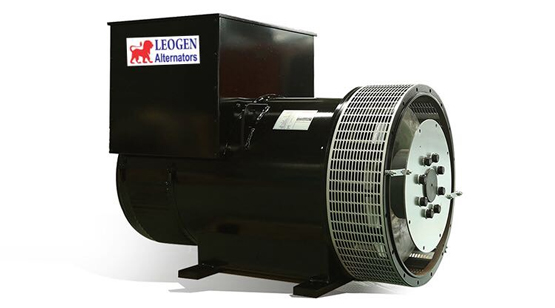

Alternators
Range 8 KVA to 1250 KVA
LEOGEN ALTERNATORS are manufactured for Diesel Generators which meet the international Standards like BS, VDE, NEMA, IEC etc., which are single bearing type with inbuilt Automatic Voltage Regulators. The Alternators are with Class ‘H’ insulation system.
| Model | Three Phase 50HZ 1500RPM 380-415V | Three Phase 60HZ 1800RPM 440-480V | ||
|---|---|---|---|---|
| KVA | KW | KVA | KW | |
| LG164A | 8.0 | 6.5 | 10.2 | 8.2 |
| LG164B | 10 | 8.8 | 13.8 | 11 |
| LG164C | 12.5 | 10.8 | 16.9 | 13.5 |
| LG164D | 15 | 12.8 | 20 | 16 |
| LG184E | 20 | 18 | 28.8 | 23 |
| LG184F | 25 | 22 | 34.4 | 27.5 |
| LG184H | 35 | 30 | 46.9 | 37.5 |
| LG184J | 40 | 32 | 50 | 40 |
| LG224C | 45 | 34 | 52.5 | 42 |
| LG224D | 50 | 40 | 62.5 | 50 |
| LG224E | 62.5 | 50 | 70 | 56 |
| LG224F | 75 | 60 | 87.5 | 70 |
| LG224G | 82.5 | 70 | 97.5 | 78 |
| LG274C | 110 | 80 | 118 | 94 |
| LG274D | 110 | 91 | 138 | 110 |
| LG274E | 125 | 112 | 168 | 134 |
| LG274F | 160 | 128 | 190 | 152 |
| LG274G | 175 | 140 | 213 | 170 |
| LG274H | 200 | 160 | 245 | 196 |
| LG274J | 225 | 180 | 281 | 225 |
| LG274K | 250 | 200 | 300 | 240 |
| LG4C | 250 | 200 | 300 | 240 |
| LG4D | 300 | 240 | 360 | 288 |
| LG4ES | 325 | 260 | 394 | 316 |
| LG4E | 350 | 280 | 420 | 330 |
| LG4FS | 380 | 304 | 456 | 365 |
| LG4F | 400 | 320 | 480 | 384 |
| LG5C | 450 | 360 | 550 | 440 |
| LG5D | 500 | 400 | 610 | 488 |
| LG5ES | 563 | 450 | 625 | 500 |
| LG5E | 600 | 480 | 713 | 570 |
| LG5FS | 625 | 500 | 725 | 580 |
| LG5F | 670 | 536 | 775 | 620 |
| LG6B | 750 | 600 | 855 | 684 |
| LG6C | 800 | 640 | 916 | 733 |
| LG6D | 910 | 728 | 1043 | 843 |
| LG6E | 1000 | 800 | 1145 | 916 |
| LG6F | 1130 | 904 | 1274 | 1019 |
| LG6G | 1250 | 1000 | 1386 | 1109 |
