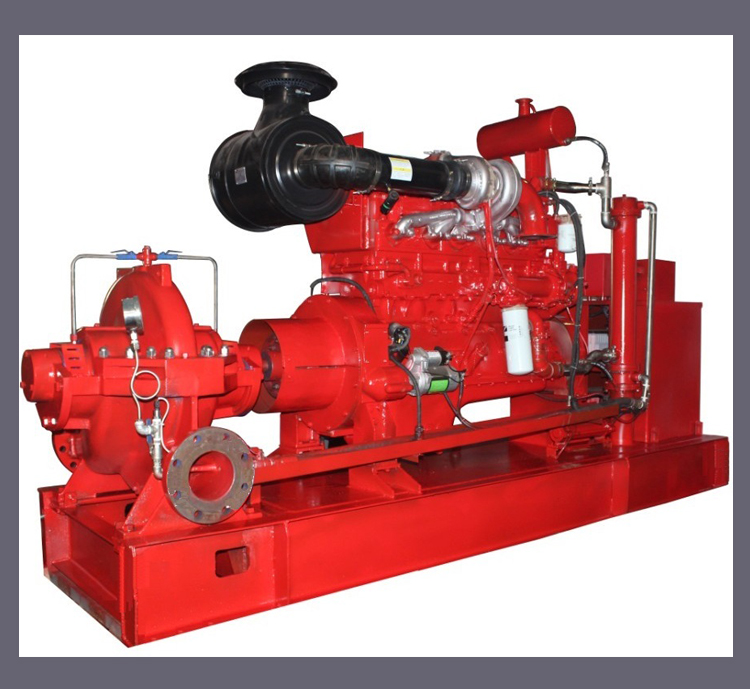

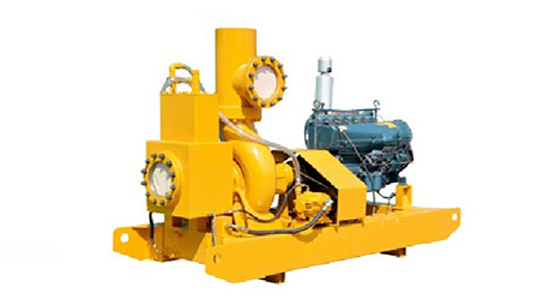

Diesel Pumpsets

Material of construction

• Pump casing : Nickel cast iron , CF8 & CF*M
• Impeller : CF8 , CF8M
• Pump Shaft : SS304 , SS316
• Priming tank : MS, SS304 ,SS316
• Air separator tank : MS
• N.R.V : Ball Type Rubber
• Mechanical Seal : SC / SC(Double)

APPLICATION

• Construction
• Industrial
• Sludge
• Solids laden liquids
• Pipeline & drilling
• Quarries
• Environmental
• Mining
• Sewage
• Ground dewatering
• jetting

FEATURES

• LEOGEN PUMPS are designed special for portable application.
• Fully automatic priming systems allow the pump prime and re-prime while running.
• Vacuum pump driven by common prime mover through belt drive arrangement.
• Fully guarded coupling, pulley and belting
• All pumps are fitted with Mechanical seal
• Heavy duty flexible tyre coupling between prime mover and pump for reliable service
• Nitrle non return valve used only a single moving part to allow full flow with minimal restrictions
• Total assembly is designed with a focus on facilitating modular type replacement of components / equipment, to ensure zero down time
• Highway trailer with 150 litre integral fuel cell / chassis is standard
• Rugged lifting bale for easy, balanced hoisting is standard for all models.
• Single stage centrifugal design pump casing and stuffing box is designed with inter changeable wear ring to reduce the hydraulic losses and improves the pump efficiency ( 86 % ),so low fuel consumption.
• Impeller is designed with cavitation free and low NPSHR, improves more suction lift and impeller life (closed / semi open ).
• Dynamically balance drotating assembly improves the life of bearings and vibration level is lesser than50 microns.
• Double mechanical seal is assembled in oil chamber which improves the life of the seal and safe from dry run.
• Shaft is covered by sleeve and closed impeller nut to protect from pumping liquid and solid particles which improves life of the shaft.
• Pumps are assembled with two tapper roller bearing to with stand axial and radial load.
• Sturdy design for continuous operation, low maintenance cost
• Dry self-prime and re prime
• Suction lift up to 9.4 mtr
• Diesel or electrical drive
• Solid handling size upto 2 inch
• Replaceable wear parts
• Chasis – skid , road tow , wheeled
• Custom build available with canopy
